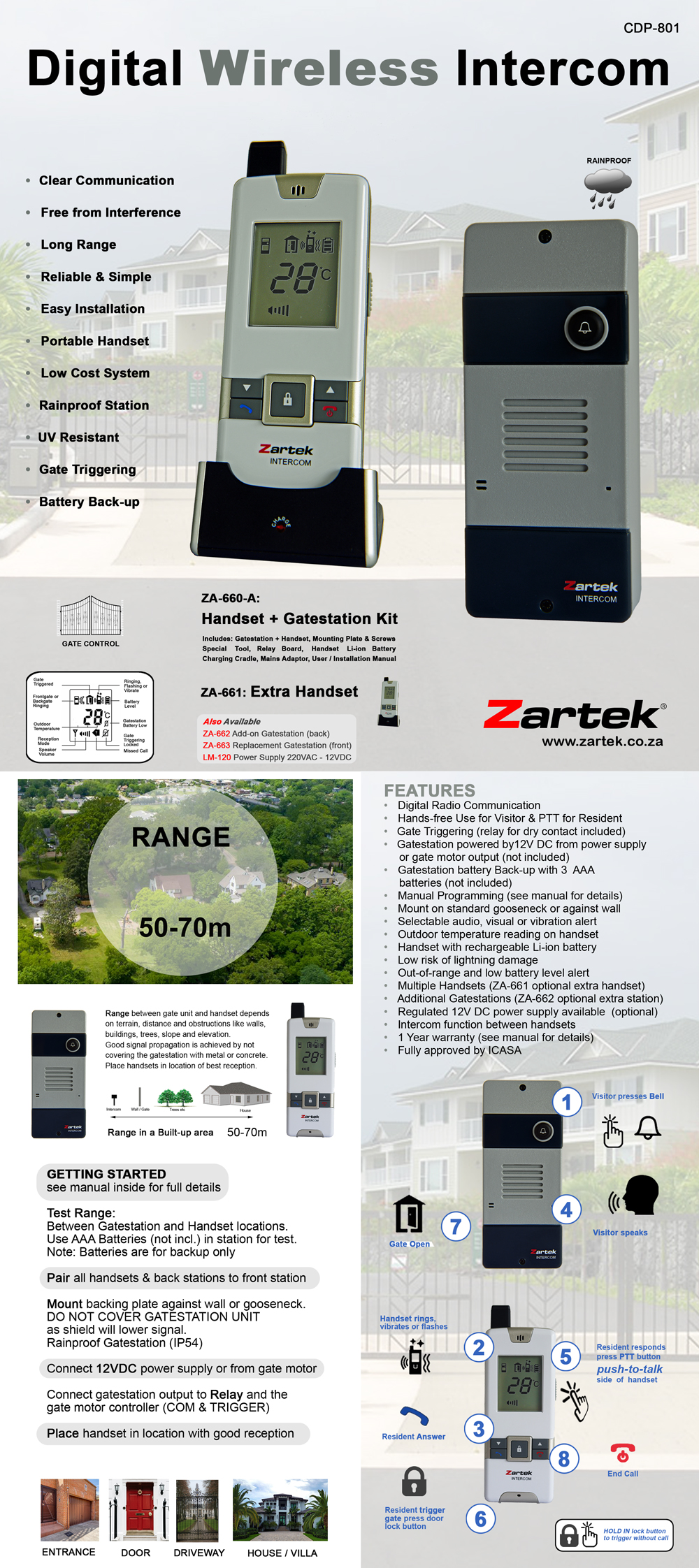

Zartek Digital Wireless One-Button Gate intercom (CDP-801)
- Long range
- Easy installation
- Automatic communication at gate, PTT function at handset
- Gate triggering from handset
ZA-660-A Gatestation and Handset Kit
ZA-661 Handset with Charger
ZA-662 Back Gatestation (slave / add-on ONLY)
ZA-663 REPLACEMENT Gatestation (master)
LM-120 Power Supply 220VAC – 12VDC
GE-286 Spare Handset Battery (Old version, silver casing, 2 wire)
GE-286-B Spare Handset Battery (NEW version 2022, gold casing, 3 wire)
- Digital Audio Communication
- Free from Interference
- Long Range
- Reliable & Simple
- Easy Installation
- Portable Handset
- Low Cost System
- Rainproof & UV resistant
- Gate Triggering
- Battery Back-up
Hands-free Use for Visitor & PTT for Resident
Gate Triggering (relay included)
Gate powered from supply (optional) or gate motor 12v
Gatestation battery Back-up with 3 AAA batteries (not included) (not for permanent installation)
Manual Programming (see manual for details)
Mount on standard gooseneck or against wall (not inside rain shield which blocks signal)
Selectable audio, visual or vibration alert
Outdoor temperature reading on handset
Handset with rechargeable Li-ion battery
Low risk of lightning damage
Out-of-range and low battery level alert
Multiple Handsets (ZA-661 optional extra handset)
Additional Gatestations (ZA-662 optional extra gatestation)
Intercom function between handsets
1 Year limited warranty (see manual for details)
Fully approved by ICASA
IDEAL FOR: Houses, Residential properties, Small Office buildings, etc
Typical Range is 50-70m in built-up areas and further in open terrain.
COMPATIBITY OF CDP-801 System
The CDP-801 one button kit and handset have been upgraded with newer circuitry due to chip availability.
The new gate unit (from ZA-660-A kit) has a light grey housing and the new handset a white glossy housing (ZA-661).
Functionality is the same but the new version is NOT COMPATIBLE to the older style units.
New white handsets (ZA-661) cannot be added to older dark grey gate units (ZA-650). Old black handsets (ZA-651) cannot be linked to new light grey gate units (ZA-660-A). Therefore if an old handset or old gate unit needs replacing, they should only be replaced with the older style units. Also note that the new handset is not compatible to the 4 button gate units (ZA-654) and only older handsets (ZA-651) can be used with it.
NEW (ZA-660-A, ZA-661)
OLD (ZA-650, ZA-651)
Communication is initiated from the gatestation by pressing the bell button.
All the handsets linked will ring and communication is established.
Communication is simplex so only one person can speak at a time but the gatestation’s microphone is always active so the visitor does not have to press any key to speak.
The inside handset can enter into the conversation at any time by pressing a PTT button.
There is a lock trigger button on the handset for opening a motorized gate or striker lock. This can trigger the front gate station at any time or during a call.
Multiple handsets can be added for the same house to have internal communication. There is a handset calling button which works on push-to-talk.
Additional (back) gate stations can be added on the system to ring the same handset/s. When a handset is on a call with a back gate, a B will show on the screen and the relay on that Gatestation can be triggered during the call
Programming is done manually to link handset or handsets to a button.
There is a light sensor which illuminates the bell button at night.
Model # ZA-660-A: Gatestation (MASTER) with Handset Kit
Package includes:
Gate Station
Handset with desktop charger
Special Tool
Manual
Relay board
Model # ZA-661: Handset with Charger
Package includes:
Handset with desk-top Charger
User Manual
Model # ZA-662: Back Gatestation (SLAVE)
Package includes:
Back Gate Station (only for adding on extra unit: SLAVE)
Special Tool
Manual
Relay board
Spare GE-286 Rechargeable Battery 3.7V Li-ion, wire with connector
